Atomic Structure

How Relative Atomic Mass Became Standardised

Relative Atomic Mass

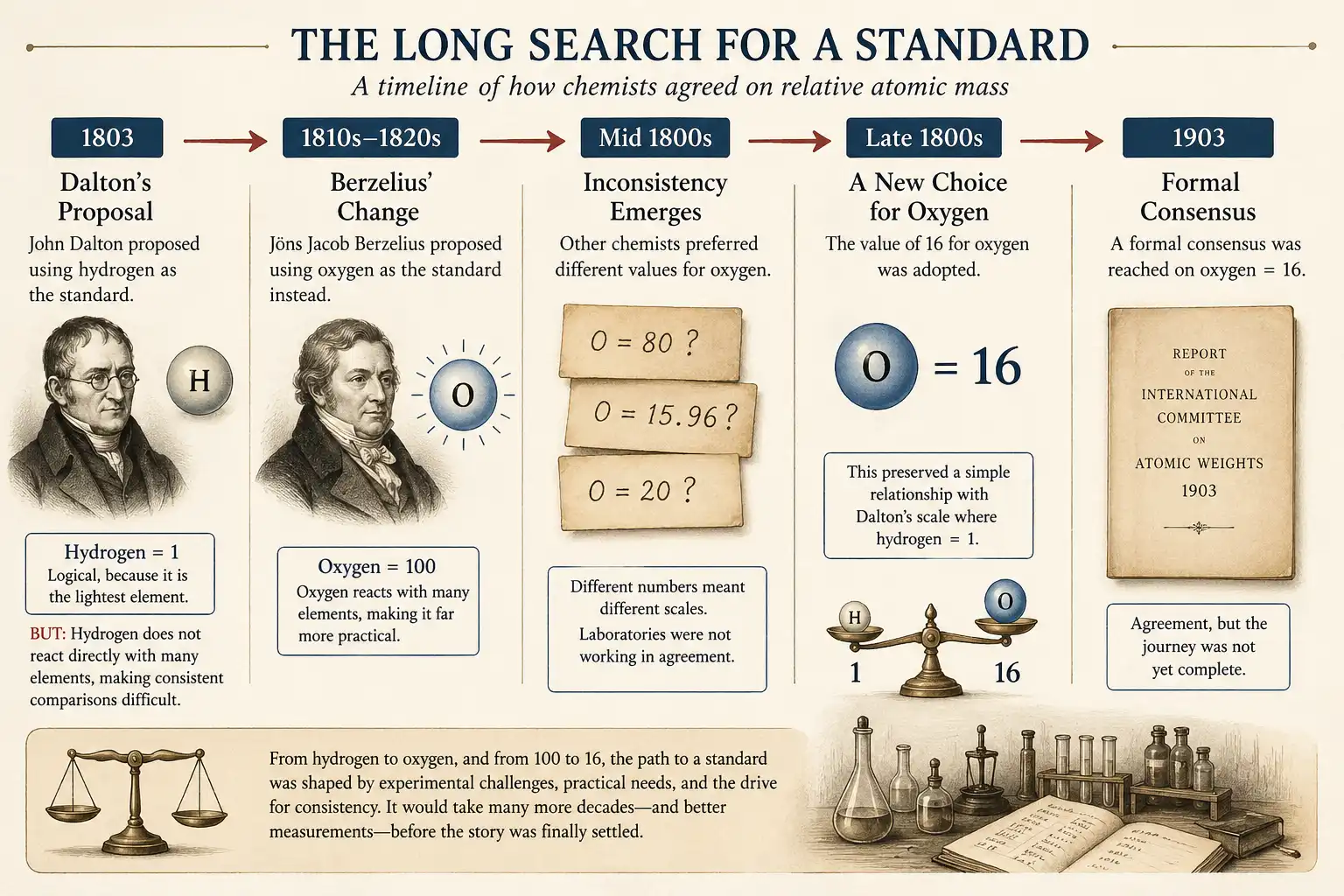

Why Choosing a Standard Was Not Simple

At first glance, choosing a standard for relative atomic mass sounds like a simple decision. In reality, it took over a century of debate, compromise, and improving scientific understanding before chemists and physicists finally aligned. The modern system, based on carbon-12 (¹²C), was only officially agreed in 1961.

Early on, John Dalton proposed using hydrogen as the reference point. His reasoning was straightforward: hydrogen is the lightest element, so assigning it a value of 1 seemed logical and clean. But as experimental chemistry developed through the nineteenth century, this approach started to show limitations. Atomic masses were not being measured directly. Instead, they were inferred by reacting elements together and analysing the mass ratios in which they combined. Hydrogen turned out to be a poor reference in this context because it does not react directly with many elements, making consistent comparisons difficult.

This led to a shift in thinking. Jöns Jacob Berzelius proposed using oxygen as the standard instead. Oxygen reacts with a wide range of elements, making it far more practical for experimental work. However, he assigned it an arbitrary value of 100, which created inconsistency when other chemists began suggesting alternative values. Some preferred to keep oxygen as the standard but argued for numbers lower than 100. At this point, the system lacked uniformity, and different laboratories were effectively working with slightly different scales.

To stabilise the situation, the value of 16 for oxygen was eventually adopted. This choice had a useful advantage: it preserved a simple relationship with Dalton’s original scale, where hydrogen was 1. Even so, agreement was slow. It was not until 1903 that a formal consensus was reached, and even then, the issue was not completely resolved.

Amedeo Avogadro

The Scientist Whose Name Became Linked to the Mole

Amedeo Avogadro did not begin as a scientist. Born into a wealthy family in Turin, he initially followed a very different path, studying law and qualifying in ecclesiastical law by the age of 20. He practised for a few years, but his real interest was always in science, or “natural philosophy” as it was known at the time. Eventually, he shifted his focus, choosing to pursue a field that was far less established but far more aligned with his curiosity.

Avogadro lived a relatively quiet life compared to many scientists of his time. He was married, had six children, and spent much of his career working as a professor of mathematical physics in Turin. Alongside teaching, he was involved in public roles related to national statistics, meteorology, and systems of measurement, even helping to introduce the metric system to his region.

His most important scientific contribution came from thinking differently about gases. At a time when atoms and molecules were still poorly understood, Avogadro proposed that equal volumes of gases, at the same temperature and pressure, contain the same number of particles. This idea, now known as Avogadro’s Law, was not widely accepted during his lifetime, but it later became fundamental to modern chemistry.

What makes Avogadro worth recognising is not just the law named after him, but the way he approached problems. He focused on clarity and logical consistency in a field that was still developing. His work helped bridge the gap between atoms and molecules, giving future scientists a clearer framework to build on.

Today, his name appears in one of the most important constants in chemistry, but during his life, his ideas were largely overlooked. It is a reminder that some of the most important contributions are not always recognised immediately, but they still shape everything that comes after.

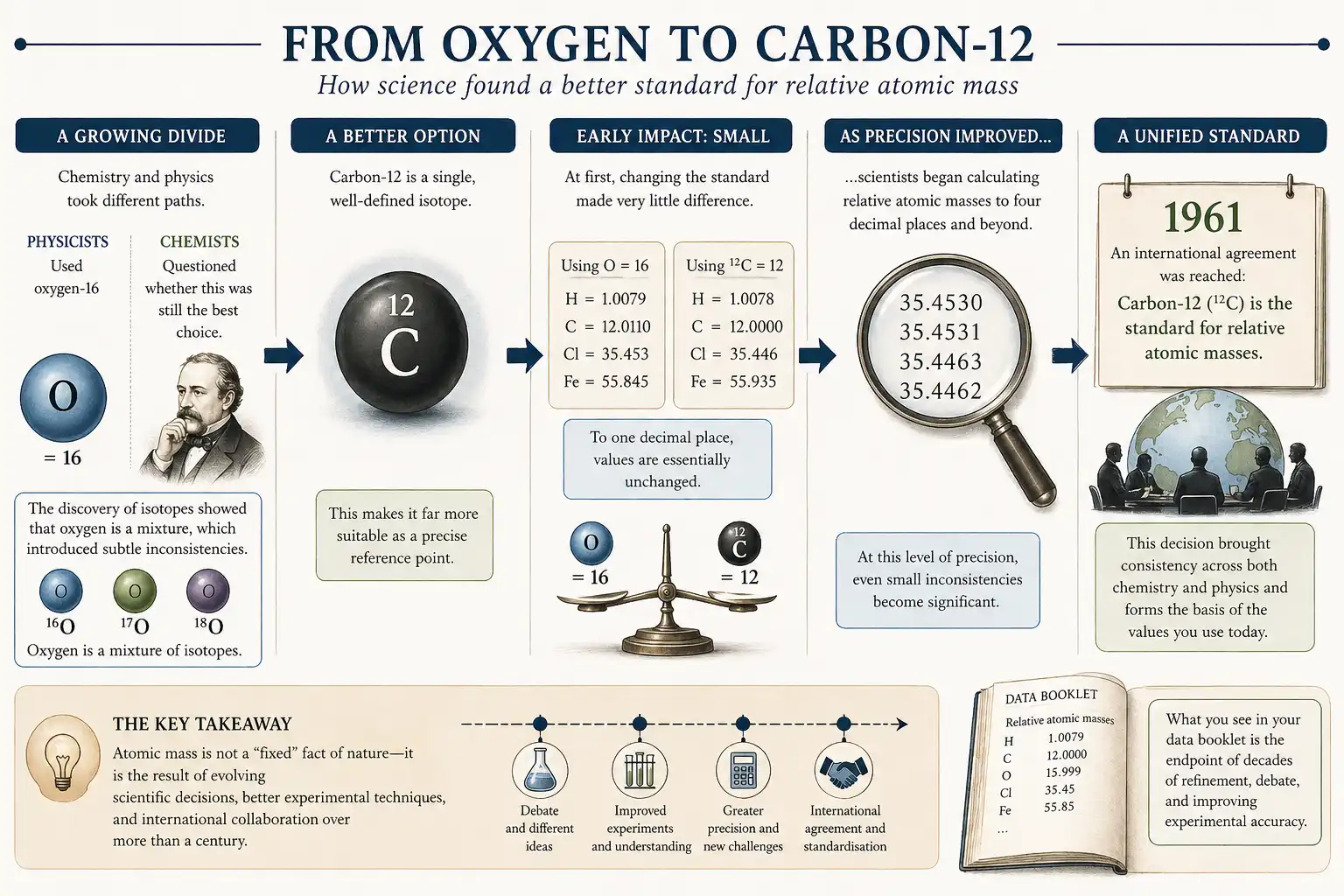

Carbon-12 Standard

From Oxygen to Carbon-12

A key complication came from the growing divide between chemistry and physics. Physicists continued to use oxygen-16 as their standard, while chemists began questioning whether this was still the best option. The discovery of isotopes made the problem more complex. Oxygen exists as a mixture of isotopes, so using it as a standard introduced subtle inconsistencies depending on how measurements were made.

This is where carbon-12 becomes important. Carbon-12 is a single, well-defined isotope, which makes it far more suitable as a precise reference point. Initially, switching standards made very little difference to most calculated values. If you were working to one decimal place, the numbers were essentially unchanged. But as experimental techniques improved, scientists began calculating relative atomic masses to four decimal places and beyond. At that level of precision, even small inconsistencies in the standard become significant.

By the mid-twentieth century, it was clear that a unified system was needed. In 1961, an international agreement was finally reached to use carbon-12 as the standard for relative atomic masses. This decision brought consistency across both chemistry and physics and forms the basis of the values you use today.

The key takeaway is that something as “fixed” as atomic mass is actually the result of evolving scientific decisions. What you see in your data booklet is not just a number, but the endpoint of decades of refinement, debate, and improving experimental accuracy.

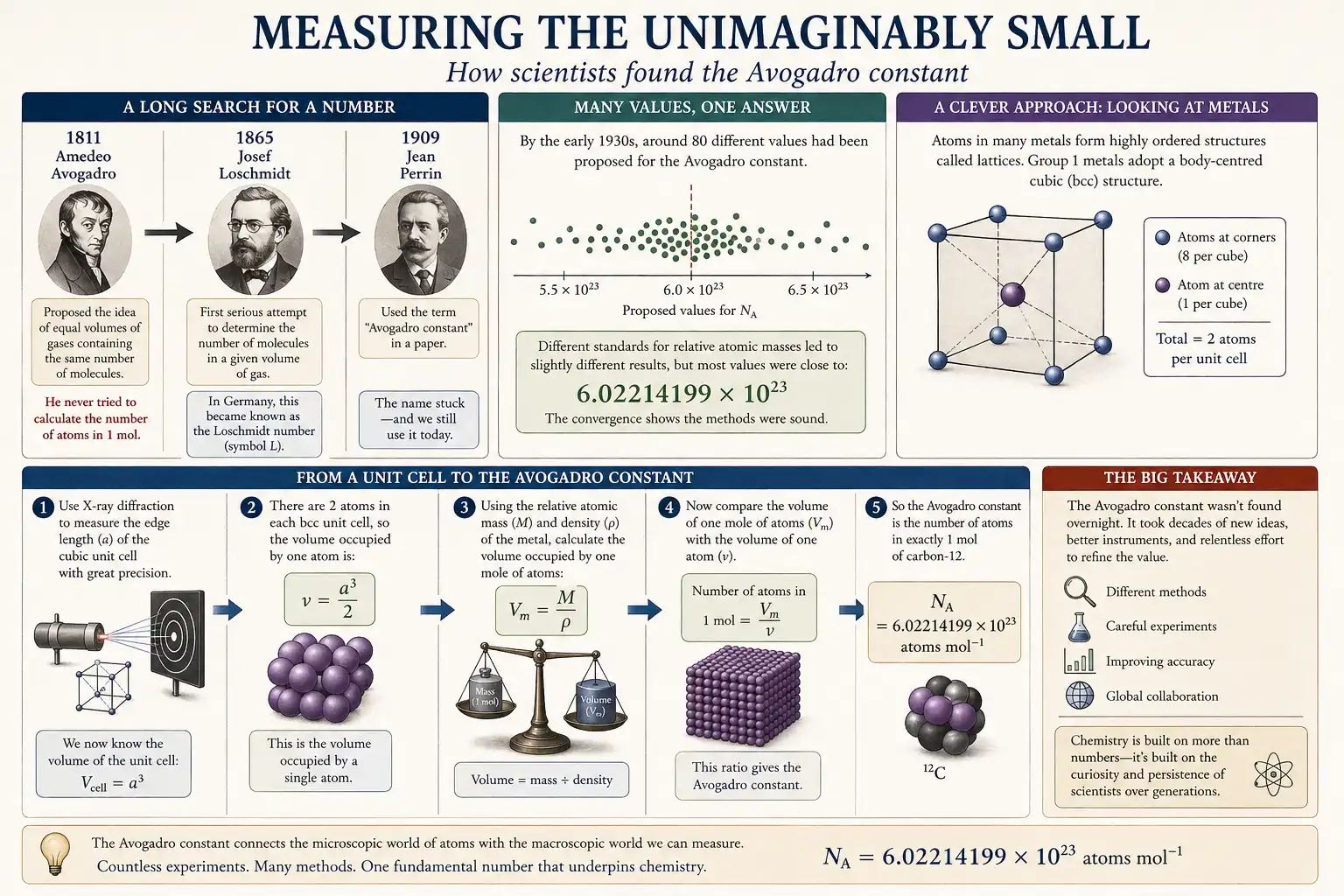

Avogadro Constant

Measuring the Small

The number of atoms in 1 mol of carbon-12 is what we now call the Avogadro constant, and it is one of those ideas that feels obvious once you know it, but took a long time to actually pin down. Interestingly, Amedeo Avogadro himself never tried to calculate this number. The first serious attempt came from an Austrian schoolteacher, Josef Loschmidt. In fact, for years in Germany, this value was referred to as the Loschmidt number and written using the symbol L. It was not until 1909, in a paper by Jean Perrin, that the term “Avogadro constant” was formally introduced and started to stick.

Now, this is not a number you can just “work out” easily. It is not like plugging values into a simple equation and getting an answer. Throughout the twentieth century, scientists were trying different approaches, refining methods, and improving experimental accuracy. By the early 1930s, there were around 80 different proposed values for this constant. That might sound messy, but it actually reflects something important: scientists were using slightly different standards for relative atomic masses at the time, which affected their calculations. Even so, most of these values were surprisingly close to the one we accept today: 6.02214199 × 10²³. That level of convergence shows the underlying methods were solid, even if the precision was not quite there yet.

One of the more interesting ways scientists approached this problem was by looking at the structure of metals. In solid metals, atoms are not randomly arranged. They form highly ordered, repeating structures called lattices. If you take elements in group 1 of the periodic table as an example, their atoms arrange in a pattern where one atom sits at the centre of a cube, with eight others positioned at the corners. This is known as a body-centred cubic structure.

Here is where it gets clever. Using X-ray diffraction, scientists can measure the size of that cube with high precision. Once you know the dimensions of the unit cell, you can calculate the volume occupied by a single atom, which we can call v. Then, using the relative atomic mass of the element and its density, you can calculate the volume occupied by one mole of that substance, V_m, because volume is simply mass divided by density.

At that point, it becomes a scaling problem. If you know the volume taken up by one atom, and the total volume taken up by one mole of atoms, you can determine how many atoms must be present in that mole. Mathematically, this is expressed as V_m divided by v. That ratio gives you the Avogadro constant.

What is important to take from this is not just the final number, but the process. This was not a single breakthrough moment. It was decades of refinement, different methods, and scientists gradually closing in on a consistent value. It is a reminder that chemistry, especially at this level, is not just about memorising constants. It is about understanding how those constants were built, tested, and justified through real experimental thinking.

Practice Question

Avogadro and Scale

Sugar lumps are cubes of side 1 cm. The Earth's land surface is approximately 1.5 × 10⁸ km².

(a) Calculate the area of the Earth's land surface in cm².

(b) Work out how many sugar lumps would be required to cover this area.

(c) Taking Avogadro’s number as 6 × 10²³, calculate the height of the pile in metres.

Show Answer

Model Answer

Scaling Calculations

(a)

1 km = 100,000 cm, so 1 km² = (10⁵)² = 10¹⁰ cm².

Area = 1.5 × 10⁸ × 10¹⁰ = 1.5 × 10¹⁸ cm².

(b)

Each sugar lump covers 1 cm², since 1 cm × 1 cm = 1 cm².

Number of lumps required = 1.5 × 10¹⁸.

(c)

Total lumps in 1 mol = 6 × 10²³.

Height = (6 × 10²³ ÷ 1.5 × 10¹⁸) cm.

Height = 4 × 10⁵ cm.

Convert to metres: ÷100 = 4 × 10³ m.

Back to Question

Practice Question

Chlorine Isotopes and Relative Abundance

Chlorine has two main isotopes: ³⁵Cl with a relative abundance of 75% and ³⁷Cl with a relative abundance of 25%.

(a) Calculate the mass of 1 mol of chlorine atoms.

Chlorine occurs naturally as Cl₂. The mass of 1 mol of this molecule is made up from all possible isotope combinations.

(b)(i) Explain why Cl₂ molecules have masses of 70, 72 and 74.

(b)(ii) Explain which Cl₂ molecule would be most abundant.

(b)(iii) Calculate the relative abundance of each Cl₂ molecule.

Show Answer

Model Answer

Weighted Mean and Isotope Combinations

(a)

The mass of 1 mol of chlorine atoms is found using the weighted mean:

(35 × 0.75) + (37 × 0.25)

26.25 + 9.25 = 35.5 g mol⁻¹

Therefore, 1 mol of chlorine atoms has a mass of 35.5 g.

(b)(i)

A Cl₂ molecule contains two chlorine atoms, so different isotope combinations give different molecular masses.

³⁵Cl + ³⁵Cl = 70

³⁵Cl + ³⁷Cl = 72

³⁷Cl + ³⁷Cl = 74

(b)(ii)

The most abundant Cl₂ molecule would be ³⁵Cl-³⁵Cl.

This is because ³⁵Cl is the more abundant isotope, with a relative abundance of 75%.

(b)(iii)

Use the isotope abundances as probabilities:

³⁵Cl = 0.75 and ³⁷Cl = 0.25

For mass 70: ³⁵Cl-³⁵Cl = 0.75 × 0.75 = 0.5625 = 56.25%

For mass 72: ³⁵Cl-³⁷Cl or ³⁷Cl-³⁵Cl = 2 × 0.75 × 0.25 = 0.375 = 37.5%

For mass 74: ³⁷Cl-³⁷Cl = 0.25 × 0.25 = 0.0625 = 6.25%

Back to Question

Practice Question

Mass of Hydrogen Atoms

A hydrogen atom consists of 1 proton and 1 electron.

Mass of a proton = 1.672648586 × 10⁻²⁷ kg
Mass of an electron = 0.910953448 × 10⁻³⁰ kg

Calculate the mass of 1 mol of hydrogen atoms. Give your answer in grams.

Show Answer

Model Answer

Molar Mass Calculation

Mass of one hydrogen atom = mass of proton + mass of electron.

= (1.672648586 × 10⁻²⁷) + (0.910953448 × 10⁻³⁰)

Convert electron mass:

= 1.672648586 × 10⁻²⁷ + 0.000910953448 × 10⁻²⁷

≈ 1.67356 × 10⁻²⁷ kg

Mass of 1 mol, multiplying by Avogadro’s number 6 × 10²³:

= 1.67356 × 10⁻²⁷ × 6 × 10²³

= 1.004 × 10⁻³ kg

Convert to grams:

= 1.004 g ≈ 1.00 g

Back to Question
